Light Tactical Trailer
Product Description
EDEY FX’s Light Tactical Trailer (LTT) was designed to provide enhanced mobility and versatility for military, search and rescue, and law enforcement operations. The LTT offers unsurpassed off-road capabilities to keep pace with modern, high speed military UTVs.
Trailers can be configured on a per order basis to incorporate common mechanical components from the tow vehicle (e.g. tires, brakes, wheel hubs)
Maximized Storage Capacity
EDEY FX’s innovative support trailer maximizes storage and flexibility for lightweight tactical teams. The Light Tactical Trailer (LTT) features a sizable internal area for heavier cargo, an upper deck with removable panels, removable side walls, two side compartments and a folding tail gate. The lower compartment and upper deck utilize aviation track for cargo tie down.
12″ of Suspension Travel
The light tactical trailer features independent trailing arms supported by coilover shocks with adjustable rebound dampening and spring pre-loaders. An unsurpassed 30.5cm (12”) of wheel travel and 33cm / 13” of ground clearance at GVW allow the LTT to keep pace with modern high speed off road UTVs. The load capacity and ride height can be tuned according to the desired payload.
Sling Loadable and Tie Down
The trailer is fitted with four lift and tie down rings for air transportability internal to an aircraft, sling loadable and parachute air droppable. Ring sizing was designed for compliance with MIL-STD-209K. The trailer’s ultra narrow width of 152cm / 59.75″ allows air transportability in aircraft such as the V-22 Osprey.
EXTERIOR DIMENSIONS (L x W x H)
300 x 152 x 122cm (118" x 59.75" x 48.2")
TRAILER WEIGHT
385 kg (850lb) base weight
PAYLOAD CAPACITY
453.5 kg (1000lb)
DECK HEIGHT
110.5 cm (43.5") unloaded, 94 cm (37.0") at 453.5 kg (1000 lb) payload
GROUND CLEARANCE
49.5 cm (19.5") unloaded, 33 cm (13.0") at 453.5 kg (1000 lb) payload
UPPER CARGO DECK DIMENSIONS
180 x 142.2 cm (71" x 56")
INTERIOR CARGO VOLUME
178 x 67 x 51cm (70" x 26.5" x 20")
TIRE SIZE
32x10R15 run-flat tires
BRAKES
2 piston calipers and rotors, parking brake or optional surge brake
SUSPENSION
Independent trailing arms, coilover shocks
STANDARD FEATURES
Folding tailgate, auxiliary storage cabinets, tie-down rings for transport, L-track cargo tie-downs, 24V LED NATO lighting package
OPTIONAL EQUIPMENT

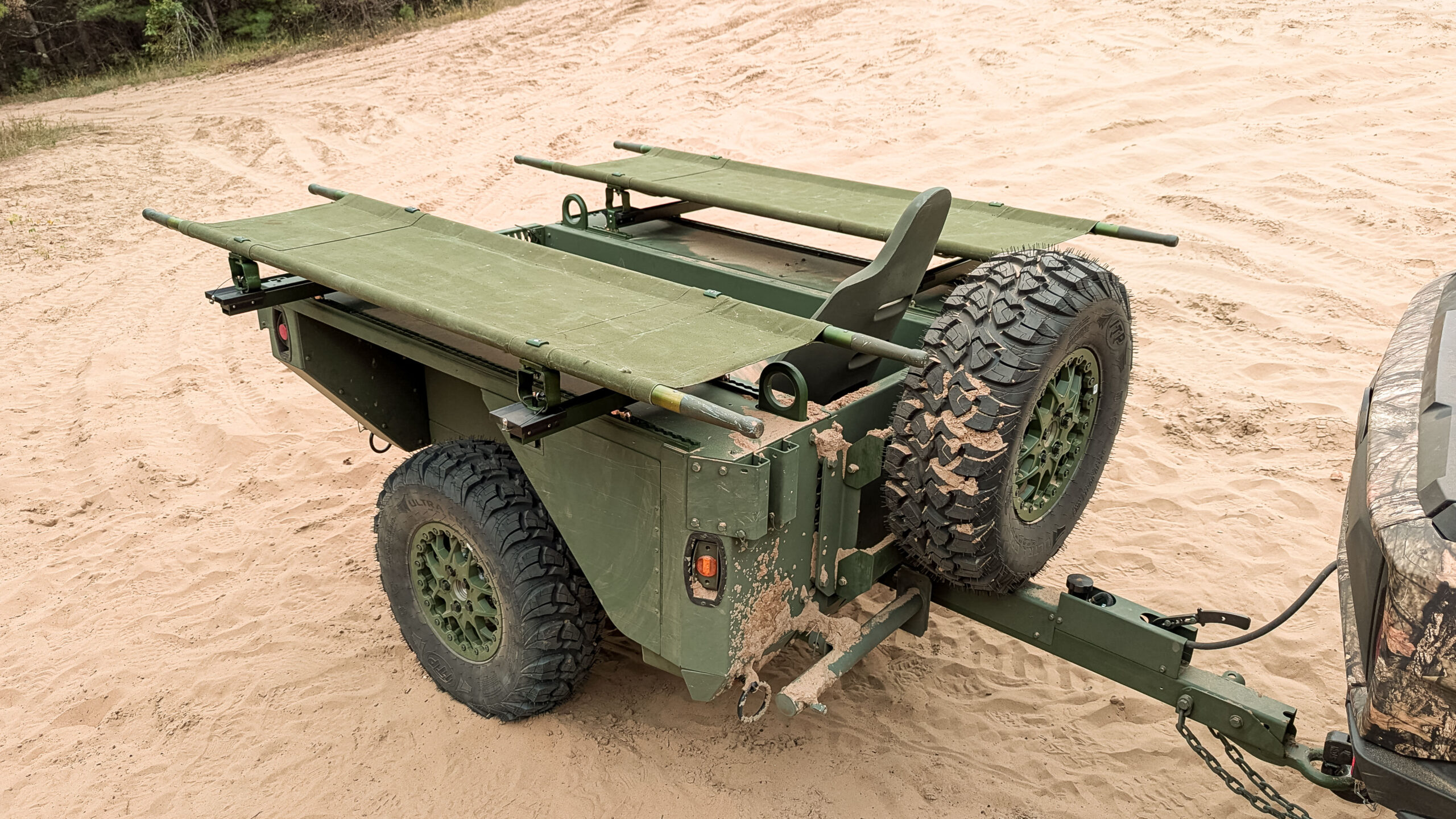

Removable side and end walls, spare tire mount, swivel lunette ring, litter mounts, lift rings for air transport and sling-loading
CAD Design: All of our products have been designed in CAD to meet our clients requirements and specifications. Our team of designers are available to make modifications to any of our products to suit your requirements. If you have an idea for a new product you wish to have designed or manufactured, please contact us.
