LIGHT TACTICAL TRAILER – 93
Product Description

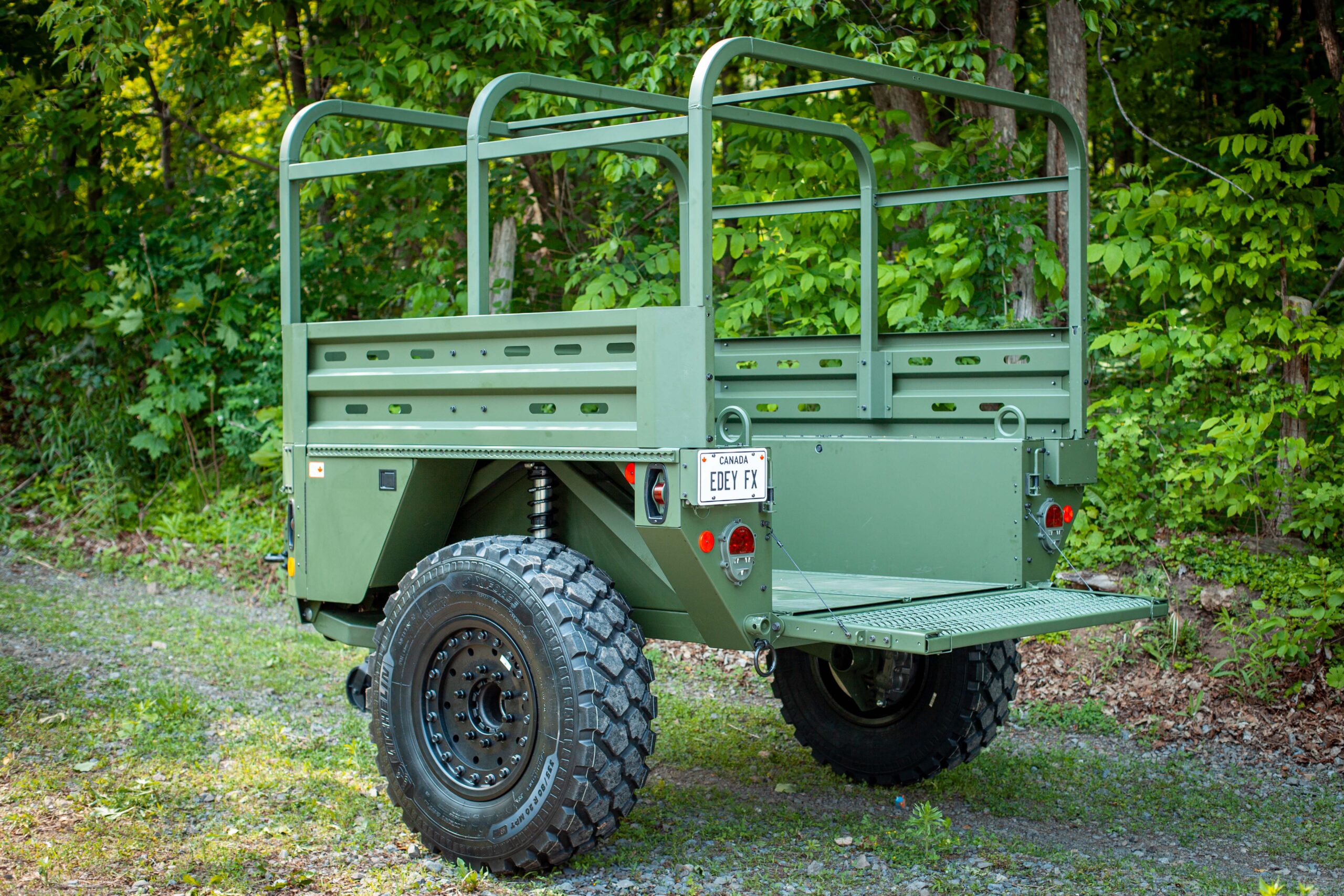

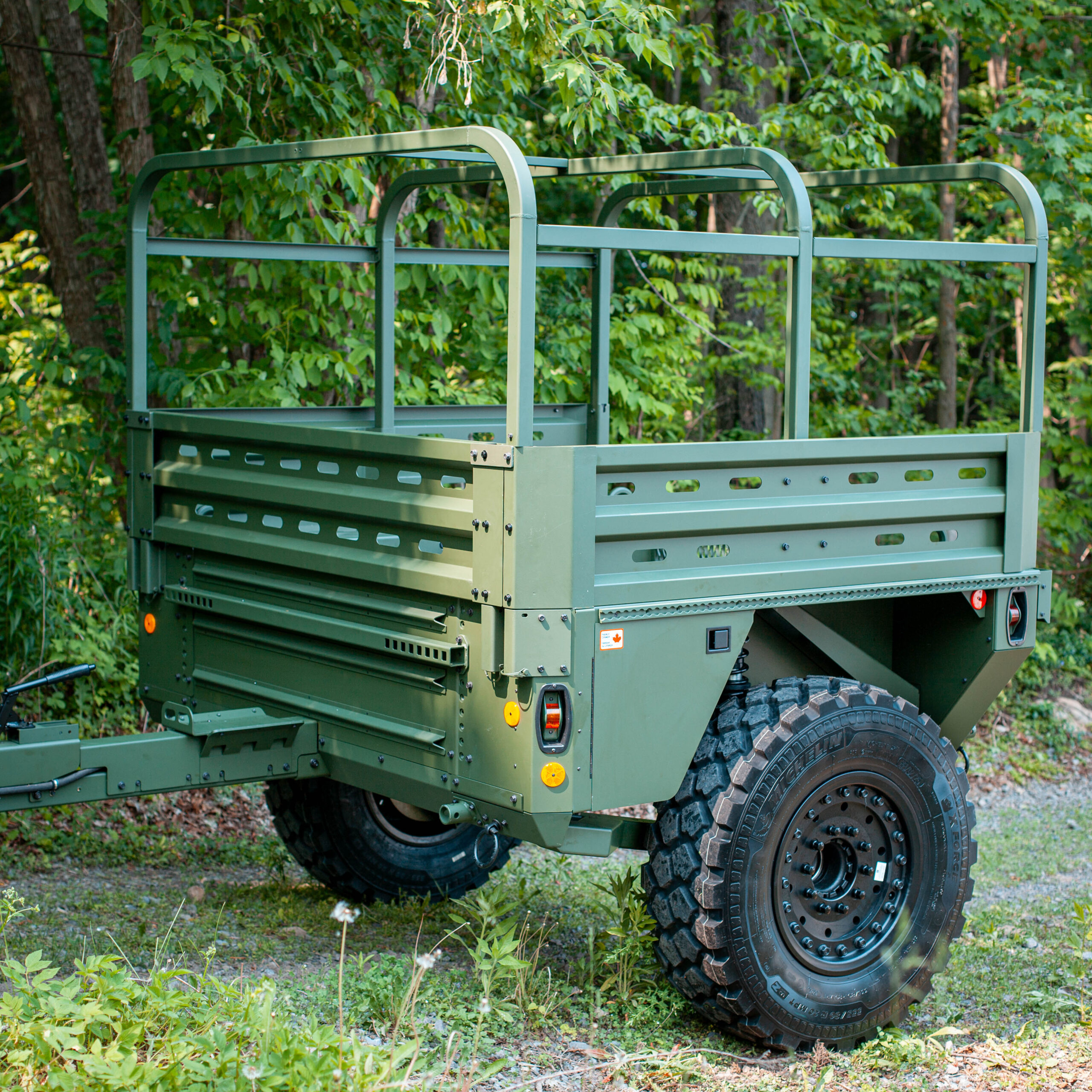

EDEY FX’s Light Tactical Trailer (LTT) was designed to provide enhanced mobility and versatility for military, search and rescue, and law enforcement operations. The LTT offers unsurpassed off-road capabilities to keep pace with modern, high speed military UTVs and ISVs.
Trailers can be configured on a per order basis to incorporate common mechanical components from the tow vehicle (e.g. tires, brakes, wheel hubs)
MAXIMIZED STORAGE CAPACITY

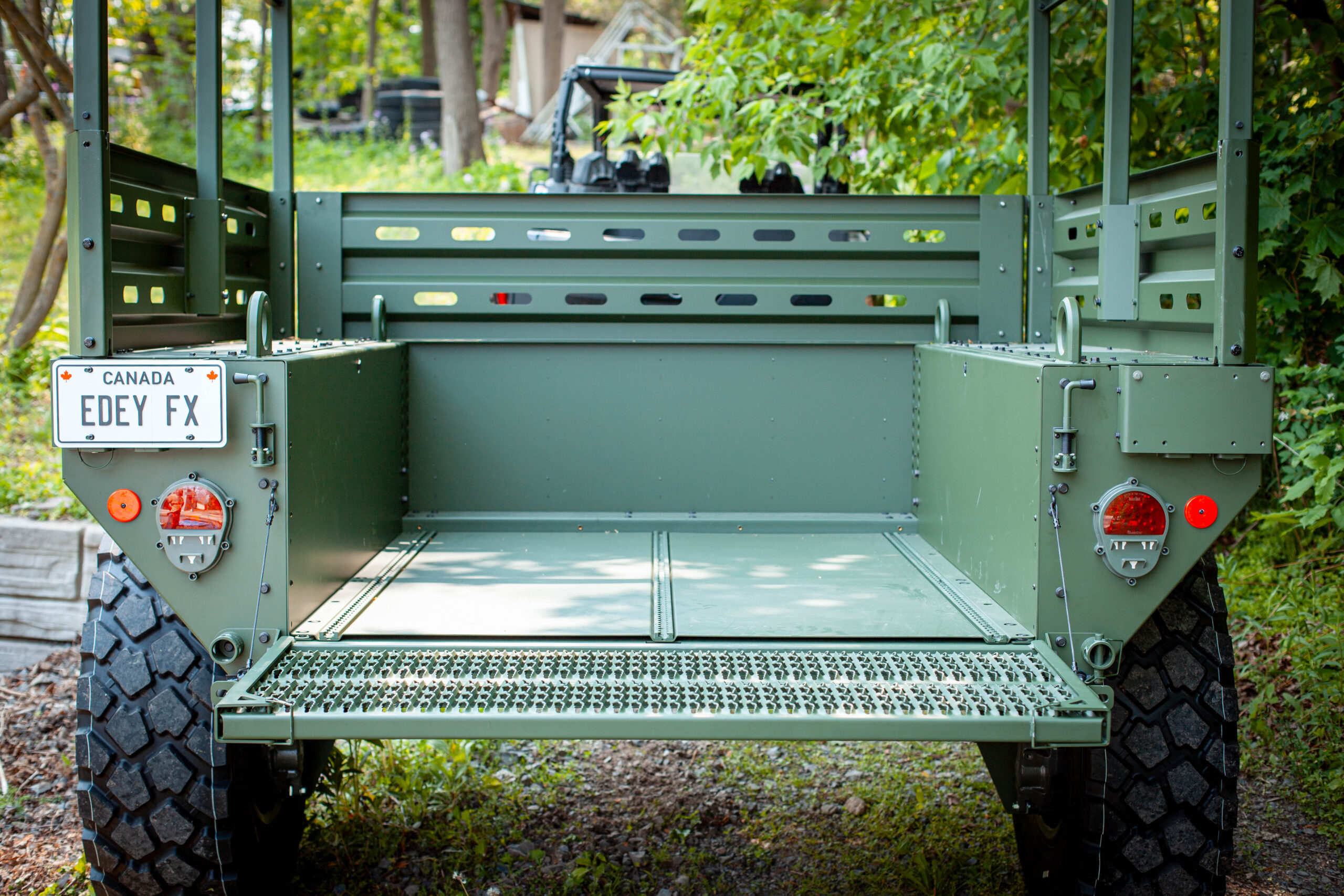

EDEY FX’s Light Tactical Trailer (LTT) is an innovative support platform designed to maximize storage and operational flexibility for tactical teams. It features a spacious internal cargo bay for heavier equipment, an upper deck with removable panels, modular side walls, and a rugged superstructure. Dual side compartments and a folding tailgate provide enhanced accessibility.
10” OF SUSPENSION TRAVEL
The LTT features independent trailing arms paired with FOX coilover shocks, providing exceptional off-road handling and durability. With 25.4 cm / 10” of wheel travel and 57.2 cm / 22.5” of ground clearance at GVW, it’s built to keep pace with modern high-speed off-road vehicles. Load capacity and ride height are fully adjustable to accommodate mission-specific payloads and terrain conditions.
AIRCRAFT TRANSPORTABLE
The trailer is equipped with four lift and tie-down rings, enabling internal air transport, sling load, and parachute airdrop operations. These rings are compliant with MIL-STD-209K to ensure compatibility with standard military equipment. Load-securing track installed at key points on both lower and upper decks offer flexible and secure cargo configurations during transport.
EXTERIOR DIMENSIONS (L x W x H)
336.6 x 236.2 x 233.5 cm / 132" x 93" x 91.9" (with superstructure)
PAYLOAD CAPACITY
1360.8 kg / 3000 lb
TRAILER WEIGHT
878.2 kg / 1936 lb with deck inserts, side walls and superstructure
GROUND CLEARANCE
71.1 cm / 28" unloaded, 57.15 cm / 22.5" at GVW
UPPER DECK HEIGHT
132.1 cm / 52" unloaded, 118.1 cm / 46.5" at GVW
UPPER DECK DIMENSIONS (L x W)
181 x 219.2 cm / 71.25" x 86.3"
LOWER CARGO VOLUME (L x W x H)
180.8 x 136.5 x 47.3cm / 71.2" x 53.7" x 18.6"
TIRE SIZE
335 / 80 R20 Michelin run flats
BRAKES
Hydraulic surge, 2 piston calipers and rotors, manual parking brake
SUSPENSION
Independent trailing arms, FOX coil-over shocks
STANDARD FEATURES
Folding tailgate, auxiliary storage cabinets, front spare tire mount, L-track cargo tie-downs, 24V LED NATO lighting package
OPTIONAL EQUIPMENT
Side and end walls, superstructure, canvas top, swivel lunette ring, litter mounts, aircraft lift & tie down rings, European lighting package
CAD Design: All of our products have been designed in CAD to meet our clients requirements and specifications. Our team of designers are available to make modifications to any of our products to suit your requirements. If you have an idea for a new product you wish to have designed or manufactured, please contact us.
